# Curve Primitives

- A CurvePrimitive is a bounded continuous curve.
- All curves implement methods (e.g.
`fractionToPoint`

to refer to "fraction" position along the curve.`fraction=0`

is the start of the primitive`fraction=1`

is the end of the primitive- increasing fractions always move forward along the primitive.
- curves implement their equations with the fraction representing the parameter in their most natural equations.

- All curves also support methods to deal with
*true distance*along the curve. These include`curve.curveLengthBetweenFractions (startFraction, endFraction)`

`curve.moveByDistanceFromFraction (startFraction, distance)`

- Fraction position along the curve is strictly proportional to true distance along the curve only for a limited number of curve types:
- LineSegment3d
- Arc3d
- TransitionSpiral

- Other curve types that have more complicated (non-proportional) fraction-to-distance relations are
- elliptic arcs
- bspline curves
- linestrings

- When movement "by distance" along a chain of curves (of varying types) is required, the
`CurveChainWithDistanceIndex`

will act like a single curve (starting and ending at fractions 0 and 1), with the fraction mapped to true distance along the chain.

## lineSegment

- A line segment is a portion of an infinite line.
- Json Fragment:
`[{"lineSegment":[[0,0,0], [3,0,0]]}`

- typescript object:

`const myLineSegment = LineSegment.create (Point3d.create (1,2,3), Point3d.create(6,4,2));`

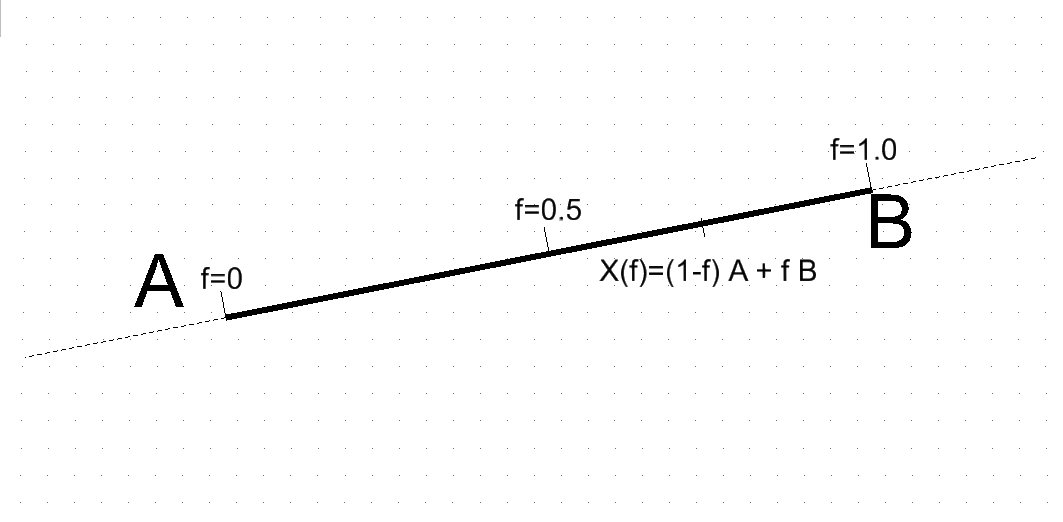

- Fractional Parameterization:

```
A = start point
B = end point
f = fraction varying from 0 to 1
Point X(f) at fractional position f along the lineSegment is
X(f) = (1-f) * A + f * B
```

## lineString

- A LineString is an array of points that are to be connected by straight lines.

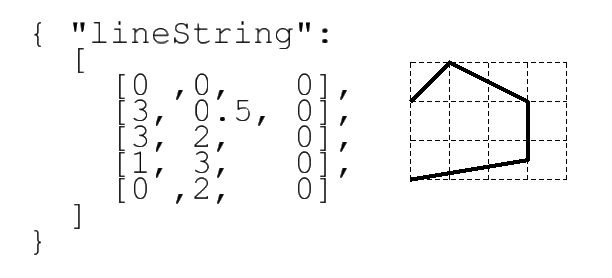

- Json Fragment:
- Typescript object:

`const myLineString = LineString.create ([point0, point1, point2 ....]);`

- Fractional Parameterization

Having both individual line segments and the composite linestring complicates parameterization.

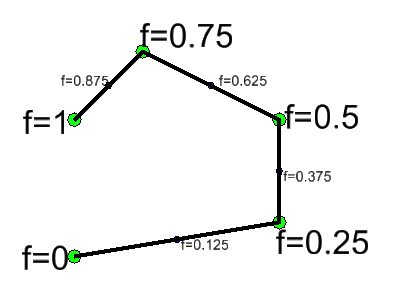

- As with all CurvePrimitives, the fractional parameterization for the complete linestring must have
`fraction=0`

at the start and`fraction=1`

at the end. - The fractional positions of each interior vertex are then defined at
*equal intervals in the fraction space*. - Hence in the example, with 4 segments the vertex fractions increment by one quarter.
- Within each segment, the fraction interval is mapped as if it were a line segment.
- Note that having uniform vertex-to-vertex fraction means that the distance-along-the-linestring is
*not proportional to fraction-along-entire-linestring*. Fraction and distance changes are only proportional within individual segments.

## arcs (circular and elliptic)

An arc primitive is a portion of a circular or elliptical arc. The equations for a complete elliptic arc require a center point and two vectors. The start and end of a partial arc are controlled by two angles.

The equational forms for circular and elliptic cases are identical. Telling whether a given arc is true circular requires examination of the vector coordinates.

The stroking equation that maps an angle to a coordinates to points around a (full) elliptic (or circular) arc is

```
C = center point
U = vector from center point to 0-degree point
V = vector from center point to 90-degree point.
theta = angle
X(theta) = C + cos (theta * U + sin(theta) * V
```

### True Circles

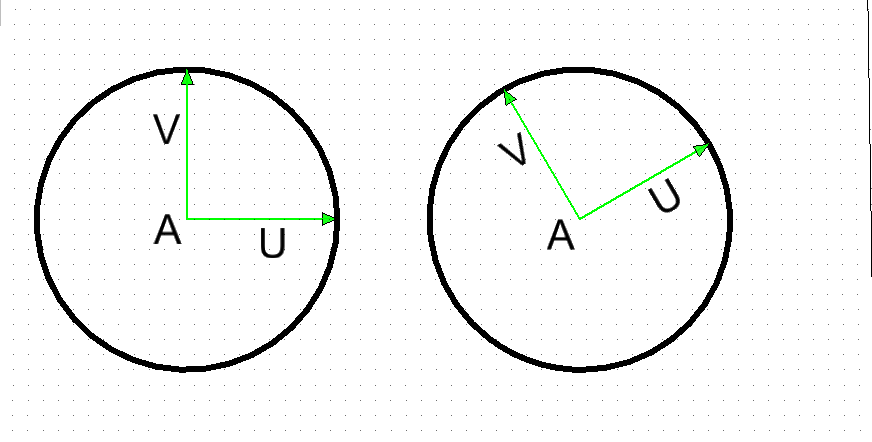

- If the
`U`

and`V`

vectors are (both)*perpendicular*and*the same length*, this is a true circle. - In the both circles below, the
`U`

and`V`

are identical length and perpendicular to each other. - For the left circle,
`U`

and`V`

happen to be in the global x and y directions. - For the right circle,
`U`

and`V`

are still identical length and perpendicular, but are both rotated away from global x and y. This still traces a circle, but the "0 degree" point is moved around the circle. - When the circular arc conditions are true, the angle used
*in the equations*is an the actual physical angle between the`U`

vector and the vector from the center to`X(theta)`

.

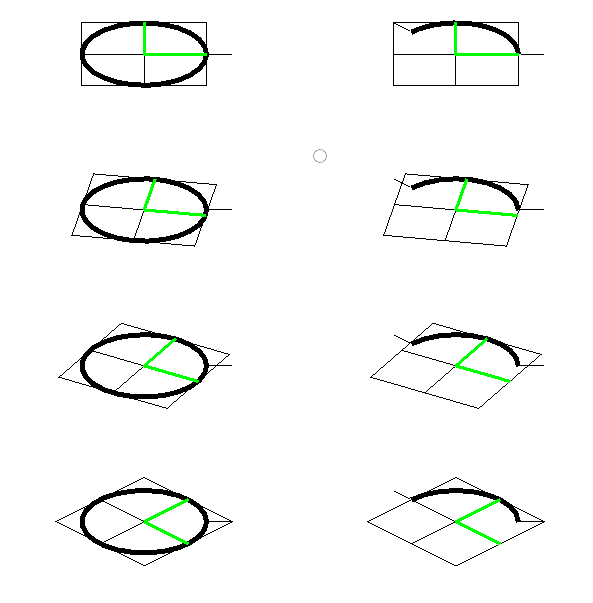

### Ellipse

If the `U`

and `V`

vectors either (a) have different lengths or (b) are not perpendicular, the ellipse is non-circular.

If `U`

and `V`

are perpendicular, their lengths correspond to the common usage of "major" and "minor" axis lengths. But the perpendicular condition is not required -- non-perpendicular vectors occur due to transformation and construction history.

### Angular limits

To draw an arc that is not the complete circle or ellipse, simply limit the theta range to something other than 0 to 360 degrees.

```
theta0 = angular start point
theta1 = angular and point
f = fraction varying from 0 to 1
theta(f) = (1-f) * theta0 + f * theta1
Point X(f) at fractional position f along the arc is
X(f) = C + cos (theta(f)) * U + sin(theta(f)) * V
```

- Angles theta0 and theta1 can be negative and can be outside of 360 degrees.
- Angle theta1 can be less than theta0

Examples of arc sweep

start and end angles | CCW signed sweep angle | image |
---|---|---|

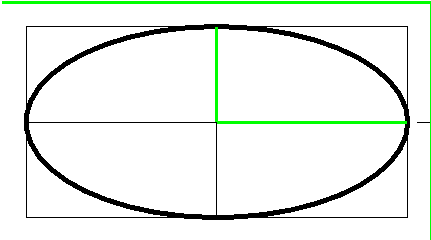

(0 to 360) | 360 | |

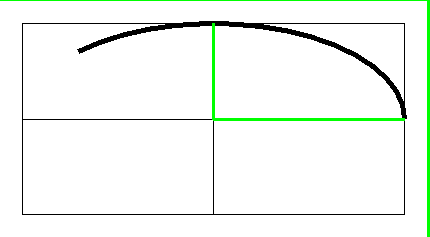

(0 to 135) | 135 | |

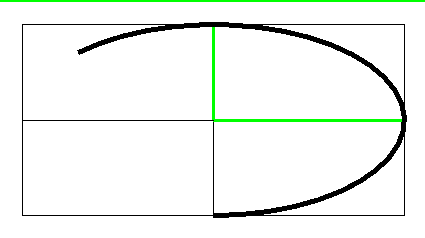

(270 to 495) | 225 | |

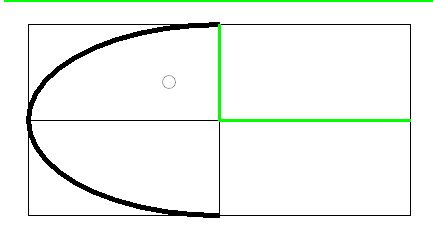

(90 to 270) | 180 | |

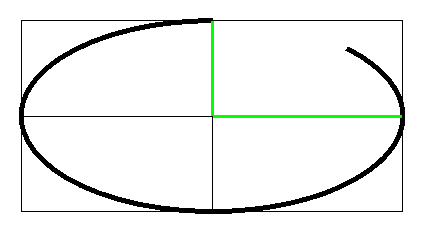

(90 to 405) | 315 |

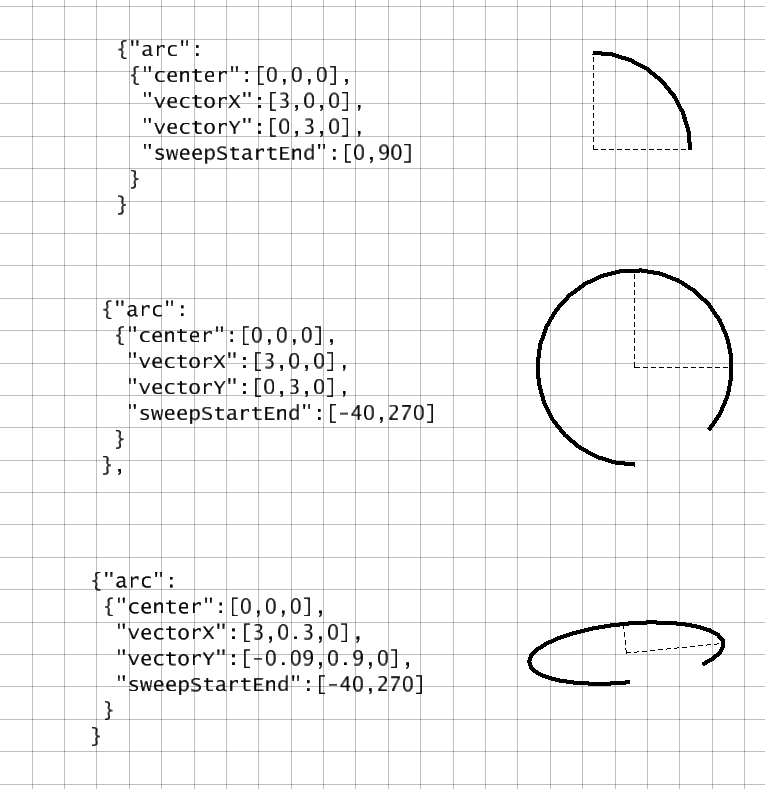

Examples with json fragments

# bspline curves

A BSplineCurve3d (or BSplineCurve3dH) is a curve that (loosely) follows a sequence of control points.

Internally, the curve is a is a sequence of polynomial curves that join together smoothly. Call each of those separate pieces a *span*.

The "control point" structure has remarkable properties for computation:

- The curve never leaves the overall xyz range of the control points.
- This bounding property applies "from any viewpoint", not just in the coordinate system where they are given.
- Even tighter, the curve is contained within the convex hull of the control points.
- No plane can intersect the curve more often than it intersects the control polygon.
- that is, the polygon may overestimate the number of intersections, (i.e. suggest false intersections), but it never underestimates.

- Inspection of the control polygon gives similar "never underestimate" statements about other properties such as
- the number of inflections.
- the number of minima and maxima of the curve and its derivatives.

- The use of "weights" on the control points allows a bspline curve to exactly trace circular and elliptic arcs without use of trig functions.

## References

There are innumerable books and web pages explaining splines. There is a high level of consistency of the concepts -- control points, basis functions, knots, and order. But be very careful about subtle details of indexing. Correct presentations may superficially appear to differ depending on whether the writer has considers `n`

indices to run

- C-style,
`0 <= i < n`

(with index`n`

*not*part of the sequence) - Fortran style ,
`1<=i<n`

- (rare)
`0<=i<=n`

Some typical descriptions are:

- https://en.wikipedia.org/wiki/B-spline
- http://web.mit.edu/hyperbook/Patrikalakis-Maekawa-Cho/node17.html
- https://www.cs.unc.edu/~dm/UNC/COMP258/LECTURES/B-spline.pdf

Be especially careful about the number of knot counts, which can differ by 2 as described in the "over-clamping" section.

The `order`

of the bspline is the number of control points that are "in effect" over an individual span.

- The first span is controlled by the first
`order`

control points, i.e. those indexed`0, 1, .. (order-1)`

. - The next span is controlled by control points indexed
`1,2,..order`

.- That is, there is a "moving window" of
`order`

points that control successive spans. - When moving from one cluster of
`order`

control points to the next, the first (left) point of the first cluster is dropped and a new one is added at the right.

- That is, there is a "moving window" of
- The sharing of control points provide the critical properties for the curve:
- No matter how many control points there are (think dozens to hundreds), each individual span is controlled by only
`order`

points. - this "local control" prevents changes "far away" in the control points from causing unexpected global changes in the curve.
- The sharing of
`order-1`

points works into the formulas to guarantee smoothness of the curve. - Specifically, for a bspline of given
`order`

:- If the knots are strictly increasing (no duplicates) the curve has
`order-2`

(i.e.`degree-1`

) continuous derivatives. - Introducing repeated knots reduces the continuity. In particular, with
`order-1`

repeated knots there is a cusp (abrupt slope change) at that knot.

- If the knots are strictly increasing (no duplicates) the curve has

- No matter how many control points there are (think dozens to hundreds), each individual span is controlled by only

## Summary

The required data for a bspline curve is:

name | type | remarks |
---|---|---|

control points | array of N points | |

order | number | the most common orders are 2 through 4; higher order gives smoother curves, but with performance cost. |

Order higher than 10 is discouraged | ||

3 (quadratic curve, degree 2) | ||

or 4 (cubic curve, degree 3) | ||

knots | array of `(N + order - 2)` numbers |
See knot paragraph |

## order

- The
`order`

is the number of control points that affect each span of the curve. - Bspline equations hypothetically allow any integer
`order`

. - For practical use the common orders are quite low - 2,3,4, with occasional 5 through 8
`order=2`

- the Bspline is a collection of straight lines (degree 1)`order=3`

- the Bspline is a collection of quadratic curves. (degree = 2) (Quadratic curves with weights can exactly trace circular and elliptic arcs)`order=4`

- the Bspline is a collection of cubic spans. These can have inflections within a span.- many graphics systems focus on cubic (
`order=4, degree=3`

bsplines. These are a good balance of curve flexibility and computational cost.

- Conversationally, if one is thinking of "quadratic" cubic "curves", it is common to refer to the
`degree`

, which is one less than the order- the
`degree`

is the highest power appearing in the polynomial - A conventional polynomial form would have coefficients of terms with power 1,2, through
`degree`

. - That polynomial would also include a constant term that does not multiply a power of x.
- Hence there is
*one more coefficient*than the degree. - textbook algebra discussions prefer reference to the highest power (
`degree`

) because that is short indicator of complexity - Bspline discussion prefers reference to
`order`

rather than`degree`

because all of the internal matrix manipulations must account for that many coefficients.

- the

## knots

- The knots are an array of sorted numbers.
- If there are K knots:
- Each cluster of
`2*order-2`

knots (i.e.`2*degree`

knots affects a single span - The knots index at
`knots[i]`

through`knots[i+2*order-3]`

(inclusive) affect span`i`

. - That knot values for that span are from
`knots[i+order-2]`

through`knots[i+2*order-2]`

.

- Each cluster of
- Within the knots sequence, the values must never go down.

### Clamping

- If knot values are strictly increasing -- e.g. 1,2,3,4,5, -- all the way to the end, the curve does
*not*pass through the first and last control points. - Having the right number of identical knot values "at the ends" makes the curve (a) pass through the end control points and (b) have tangent direction towards the immediate neighbor.
- Specifically, for a curve of given
`degree`

, exactly that number of repeated knots creates the usual "clamped" effects.- For instance, for a cubic curve, the knots
`[0,0,0,0.25,0.5,0.75,1.1.1]`

will- Pass through both end points, with tangent along the end segment of the polygon
- have interior knot breaks at 0.25, 0.5 and 0.75.

- For instance, for a cubic curve, the knots

#### OverClamping

- An important point for exchanging knots with legacy graphics systems (including Microstation and Parasolid) is that there is a long-established (an unnecessary) practice of having
*one extra (unused) knot at each end*. - That is, the
*overclamped*cubic knot sequence with breaks at 0.25, 0.5, and 0.75 would be`[0,0,0,0,0.25,0.5,0.75,1.1.1,1]`

. - The equations for the bspline will never reference the extra knots at the beginning and end.
- In the overClamping convention, the relation of counts of control points (N) and (overClamped) knots is
...

...`numberOfKnotsWithOverClamping = N + order = numberOfControlPoints + order`

In `imodeljs`

- the spline classes (
`BsplineCurve3d`

,`BSplineCurve3dH`

and surface partners)*internally*do*not*over-clamp. - The API for constructing splines accepts both styles of input. The order, knot count, and control point counts distinguish which style is being used.
- If
`numberOfControlPoints === numberOfKnots + order`

the curve is overclamped, so the first and last knot values are not saved in the bspline curve object - If
`numberOfControlPoints === numberOfKnots + order - 2`

the knots are all used.

- If
- The curve objects have method
...
curve.copyKnots(includeExtraEndKnot: boolean)
...
to extract knots. The caller can indicate if they prefer overclamped knots by passing
`true`

for the`includeExtraEndKnot`

parameter. - When knots are written in
`iModelJson`

objects, they are written with overclamp.

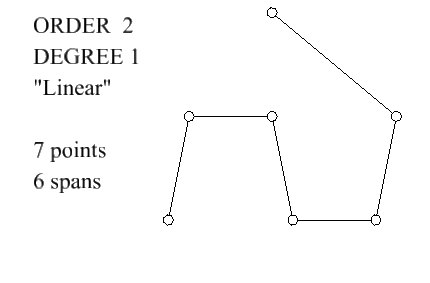

## Example: Order 2 (linear) bspline curve

- An order 2 bspline curve has degree 1, i.e. is straight lines
- The circles in the figure for order 2 bspline are both control points and span breaks.
- This is the only order for which the span breaks occur at the control points.

- The direction (first derivative) changes at control point
- Hence there are sharp corners exactly at the control points.

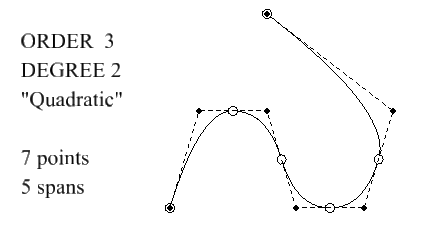

## Example: Order 3 (quadratic) bspline curve

- An order 3 bspline curve has degree 2, i.e. is piecewise quadratic
- The curve does
*not*pass through the control points (dark) - There are (for uniform interior knots) span breaks (circles) at midpoints of interior edges.
- Span changes (circles) are exactly at the midpoints of polygon edges.
- Direction (slope, first derivative) is continuous at each span change (circles)
- The concavity (second derivative) changes abruptly at each span change (circles)
- This concavity change is not always visually obvious.
- These curves are not as smooth as your eye thinks.

- There are no concavity changes within any single span.
- Clamping (2 identical knots at start, 2 identical knots at end) makes the curve pass through the end control points and point at neighbors.

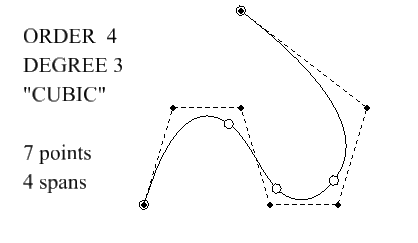

## Example: Order 4 (cubic) bspline curve

- An order 4 bspline curve has degree 3, i.e. is piecewise cubic
- The curve does
*not*pass through the control points (dark). - The curve does
*not*pass through particular points of the polygon edges. - Span changes (circles) are generally "off the polygon"
- Direction and concavity are both continuous at span changes.
- There can be one concavity change within a span.
- Clamping (3 identical knots at start, 3 identical knots at end) makes the curve pass through the end control points and point at neighbors.

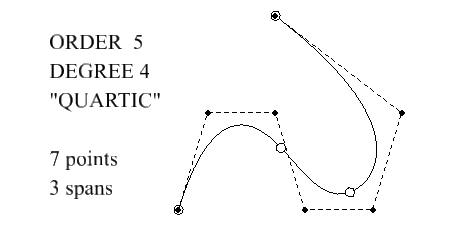

## Example: Order 5 (quartic) bspline curve

- An order 5 bspline curve has degree 4, i.e. is piecewise quartic
- The curve does
*not*pass through the control points (dark). - The curve does
*not*pass through particular points of the polygon edges. - Span changes (circles) are generally "off the polygon"
- Direction, concavity, and one more derivative are all continuous at span changes.
- There can be two concavity change within a span.
- Clamping (4 identical knots at start, 4 identical knots at end) makes the curve pass the end control points and point at neighbors.

Last Updated: 22 March, 2021
