Examples of PolyfaceClip methods

Cut Fill

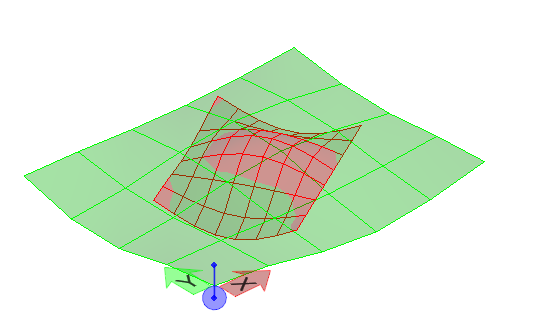

red and green meshes >
>

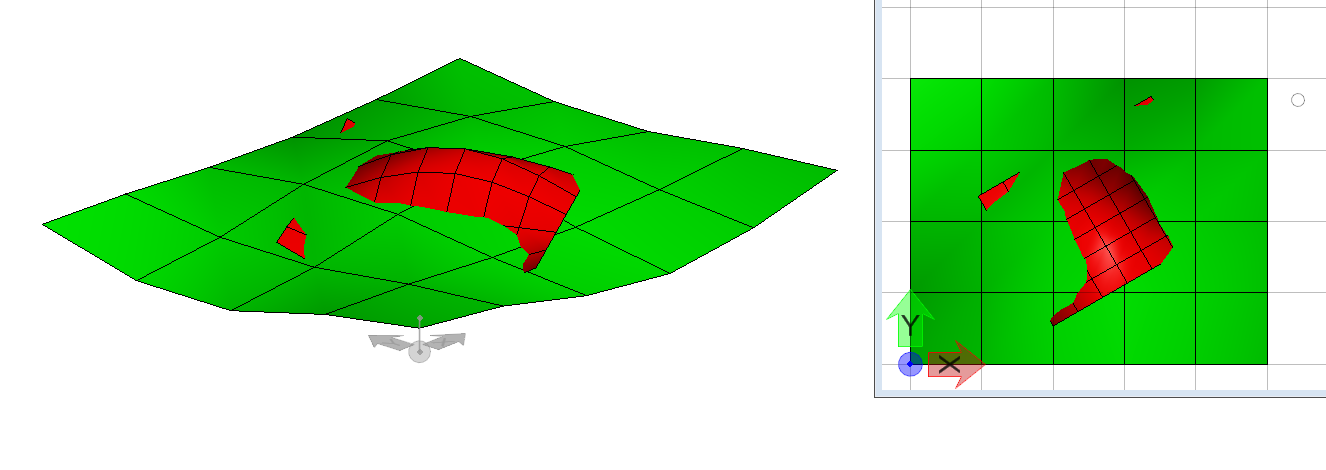

Compute "over and under" mesh parts
(red is meshA, green is meshB)
const cutFill = PolyfaceClip.computeCutFill(meshA, meshB);

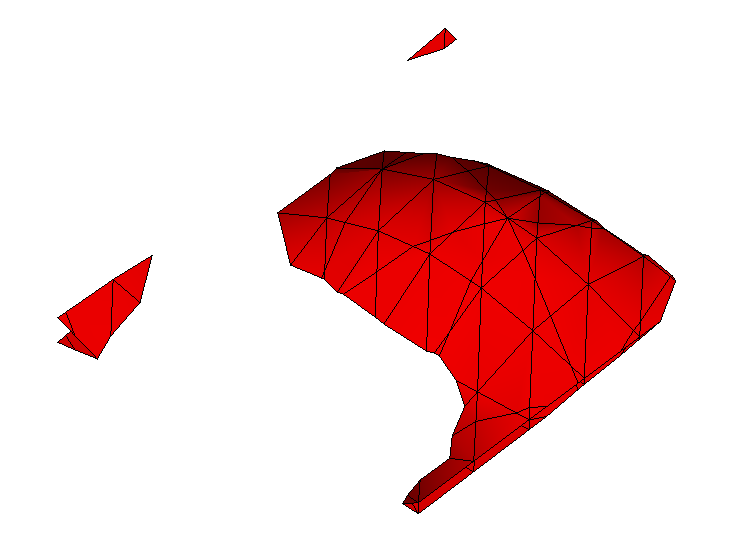

cutFill.meshAOverB > `

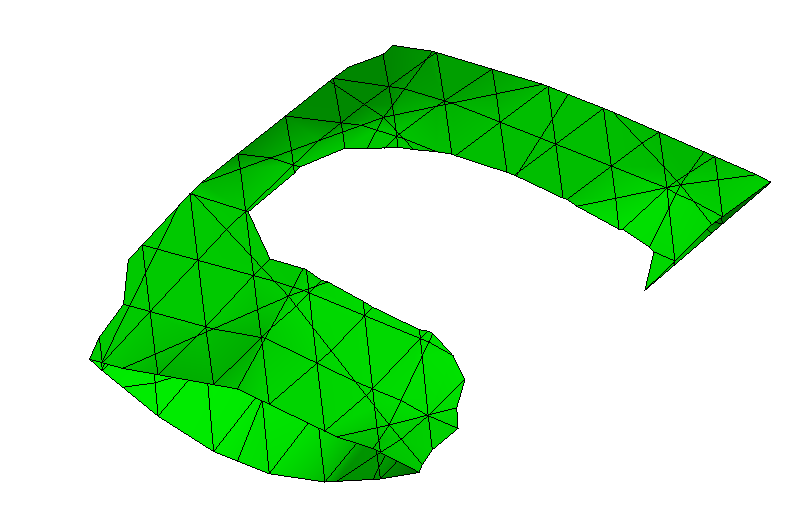

cutFill.meshBOverA > `

Unit Test

  • source: imodeljs\core\geometry\src\test\clipping\PolyfaceClip.test.ts
  • test name: "CutFill"
  • output: imodeljs\core\geometry\src\test\output\PolyfaceClip\CutFill.imjs

Section Cut

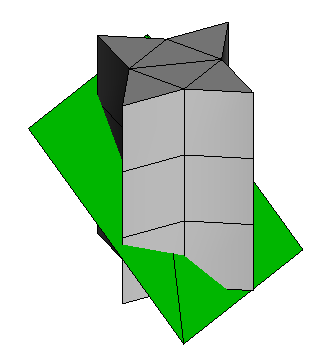

grey: closed volume mesh
green: section plane
>
extract linework of section cut const section = PolyfaceClip.sectionPolyfaceClipPlane(facets, clipPlane);
This produces an array of LineString3d >
Clip the facet set and produce facets on the cut plane
insideClip is a boolean controlling which side of the cut is kept. ` const clippedPolyface = PolyfaceClip.clipPolyfaceClipPlaneWithClosureFace(facets, clipPlane, insideClip, true);'

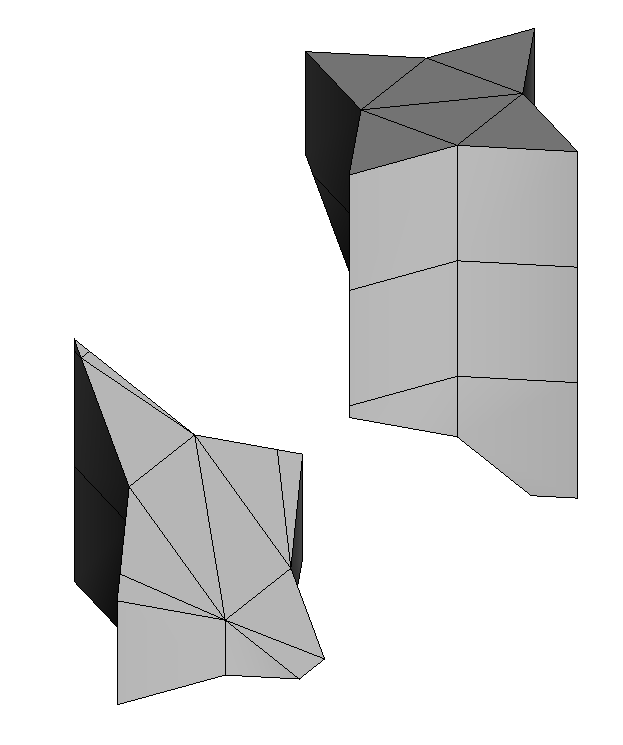

Lower and upper parts >

Unit Test:

  • source: imodeljs\core\geometry\src\test\clipping\PolyfaceClip.test.ts
  • test name: "ClosedSection"
  • output: imodeljs\core\geometry\src\test\output\PolyfaceClip\ClosedSection.imjs

Clipping with ConvexClipPlaneSet or UnionOfConvexClipPlaneSet

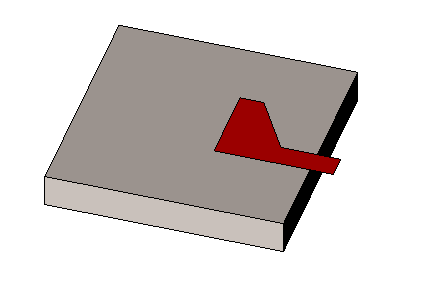

gray box is a closed volume mesh
Red shape is to be swept vertically
>
Create SweepContour as intermediate step to UnionOfConvexClipPlaneSets for the clipping. const contour = SweepContour.createForPolygon([Point3d.create(xA, yA), Point3d.create(xB, yA), Point3d.create(xA, yB), Point3d.create(xA, yA)])!;
Get the clipper out of the SweepContour const clipper = contourP0.sweepToUnionOfConvexClipPlaneSets()!;
Create a ClipBuilders object for use in the clip const clipBuilders = ClippedPolyfaceBuilders.create(true, true, true);
Do the clip PolyfaceClip.clipPolyfaceInsideOutside(facets, clipper, clipBuilders);

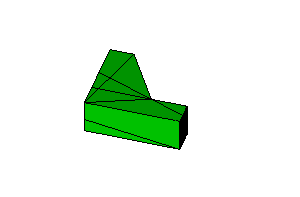

Extract the inside part insidePart = clipBuilders.claimPolyface(0, true);
>

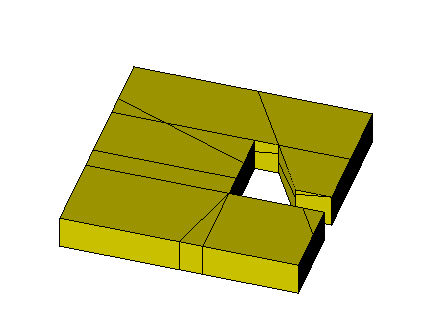

Extract the outside part insidePart = clipBuilders.claimPolyface(1, true);
>

Unit Test:

  • source: imodeljs\core\geometry\src\test\clipping\PolyfaceClip.test.ts
  • test name: "BoxClosureNonConvex"
  • output: imodeljs\core\geometry\src\test\output\PolyfaceClip\BoxClosureNonConvex.imjs

Last Updated: 22 March, 2021
