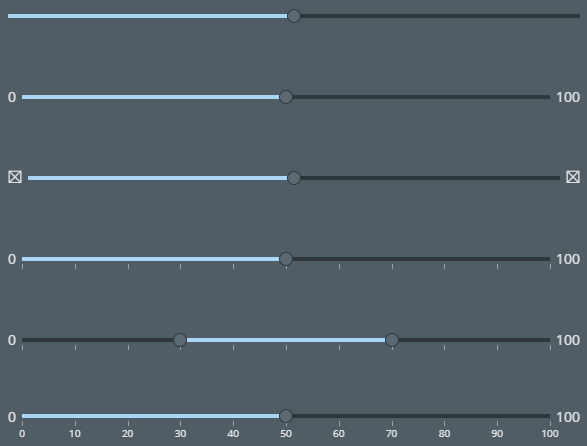

Learning > ui > core > Slider Edit this page Slider The Slider React component displays a range slider with thumbs for changing the value. The Slider component also support multiple values. The following items may optionally be shown: Minimum and maximum labels Minimum and maximum icons Tick marks Tick labels Note: The Slider component uses various components from the react-compound-slider package internally. Properties The Slider component has numerous properties, as defined in the SliderProps interface. There are 3 required props: min - Minimum value max - Maximum value values - Array of values to set the Slider to initially Controlling Interaction The step prop specifies the step value. The default is 0.1. The mode prop specifies the interaction mode. The default is 1. Possible values: 1 - allows handles to cross each other. 2 - keeps the sliders from crossing and separated by a step. 3 - makes the handles pushable and keep them a step apart. The reversed prop indicates whether the display of the Slider values is reversed. The disabled prop indicates whether the Slider is disabled. The includeTicksInWidth prop indicates whether to compensate for the tick marks when determining the width. Tooltip A tooltip may optionally be shown above or below the Slider. The showTooltip prop indicates whether to show a tooltip with the value. The tooltip will be above the Slider, by default. To show the tooltip below the Slider, set the tooltipBelow prop. The formatTooltip prop specifies a function to format a value for the tooltip. Min/Max Labels and Icons Labels or icons may optionally be shown for the minimum and maximum values. The minimum label/icon is shown to the left of the Slider; the maximum label/icon is shown to the right of the Slider. The showMinMax prop indicates whether to show min & max values to the left & right of the Slider. The minImage prop specifies an image to show instead of the min value. The maxImage prop specifies an image to show instead of the max value. Tick Marks and Labels Tick marks and tick labels may optionally be shown below the Slider. The showTicks prop indicates whether to show tick marks under the Slider. The showTickLabels prop indicates whether to show tick labels under the tick marks. The formatTick prop specifies a function to format a tick mark value. The getTickCount prop specifies a function to get the tick count. The getTickValues prop specifies a function to get the tick values. This overrides the tick count from getTickCount. Use this prop if you want to specify your own tick values instead of ticks generated by the slider. Event Handlers The onChange prop specifies a handler for value changes. It is triggered when the value of the slider has changed. This will receive changes at the end of a slide as well as changes from clicks on rails and tracks. The onUpdate prop specifies a handler for value updates. It is called with the values at each update (caution: high-volume updates when dragging). The onSlideStart prop specifies a handler triggered with onTouchStart or onMouseDown on a handle. The onSlideEnd prop specifies a handler triggered with onTouchEnd or onMouseUp on a handle. Examples A basic Slider shows a bar with a single thumb. A tooltip may optionally be shown above the thumb and is included in this example. <Slider min={0} max={100} values={[50]} step={1} showTooltip /> Min/Max Labels Labels may optionally be shown for the minimum and maximum values. The minimum label is shown to the left; the maximum label is shown to the right. The showMinMax prop is added in this example. <Slider min={0} max={100} values={[50]} step={1} showTooltip showMinMax /> Min/Max Images Icons may optionally be shown for the minimum and maximum values instead of labels. The minImage and maxImage props are added in this example. <Slider min={0} max={100} values={[50]} step={1} showTooltip showMinMax minImage={<Icon iconSpec="icon-placeholder" />} maxImage={<Icon iconSpec="icon-placeholder" />} /> Tick Marks Tick marks may optionally be shown below the Slider. The showTicks prop is added in this example. Additionally, the getTickCount prop specifies a function that returns the number of tick marks. <Slider min={0} max={100} values={[50]} step={1} showTooltip showMinMax showTicks getTickCount={() => 10} /> Multiple Values Multiple values are supported by the Slider. The values prop is an array that can hold the values. <Slider min={0} max={100} values={[30, 70]} step={5} mode={2} showTooltip showMinMax showTicks getTickCount={() => 10} /> Tick Labels Tick labels may optionally be shown below the tick marks. The showTickLabels prop is added in this example. <Slider min={0} max={100} values={[50]} step={1} showTooltip showMinMax showTickLabels showTicks getTickCount={() => 10} /> Dark Theme API Reference Slider Last Updated: 29 November, 2022
