Content Views, Controls, Groups and Layouts

A Content View is a representation of an iModel's data. It is the main graphics or data view in an iTwin.js application. There may be multiple Content Views displayed at the same time. When more than one Content View is displayed, they are usually separated by splitters, allowing the user to resize the views. There are three constructs used to manage and lay out Content Views:

Construct Description
Content Control A class that specifies the React component to display for a Content View
Content Group A collection of Content Controls
Content Layout A layout configuration of Content Views

Content Groups and Layouts may be defined locally in a Frontstage or they may be defined centrally and registered by id with the ConfigurableUiManager.

Defining Content Controls

A Content Control will either subclass ViewportContentControl if the view is a ScreenViewport or ContentControl if the view is a data view.

Subclassing ViewportContentControl

The following shows a sample Viewport content control that subclasses ViewportContentControl. It imports a local ViewportComponent implementation and sets this.reactNode. The options parameter to the constructor comes from the applicationData values set in a Content Group.

import * as React from "react";

import {
  ConfigurableCreateInfo,
  ViewportContentControl,
} from "@itwin/appui-react";

import { ScreenViewport } from "@itwin/core-frontend";

import SimpleViewportComponent from "../components/Viewport";

/**
 * iModel Viewport content
 */
export class ViewportContent extends ViewportContentControl {
  constructor(info: ConfigurableCreateInfo, options: any) {
    super(info, options);

    if (options.iModelConnection && options.viewId) {
      this.reactNode = (
        <SimpleViewportComponent
          viewportRef={(v: ScreenViewport) => { this.viewport = v; }}
          imodel={options.iModelConnection}
          viewDefinitionId={options.viewId}
          rulesetId={options.rulesetId} />
      );
    }
  }
}

Note: It is important to provide a viewportRef Prop to the ViewportComponent implementation. The viewportRef function should set this.viewport. This is important in determining when the Frontstage is ready for use.

viewportRef={(v: ScreenViewport) => { this.viewport = v; }}

Subclassing ContentControl

The following shows a sample content control that subclasses ContentControl and displays a Table data component.

import * as React from "react";

import {
  ConfigurableCreateInfo,
  ContentControl,
} from "@itwin/appui-react";

import SimpleTableComponent from "../components/Table";

/**
 * Table content
 */
export class TableContent extends ContentControl {
  constructor(info: ConfigurableCreateInfo, options: any) {
    super(info, options);

    if (options.iModelConnection) {
      this.reactNode = <SimpleTableComponent imodel={options.iModelConnection} rulesetId={options.rulesetId} />;
    }
  }
}

Defining Content Groups

When defining Content Groups, the ContentProps and ContentGroupProps interfaces and ContentGroup class are used.

The following shows a sample Content Group with a single entry that references the ViewportContent defined above. The Content Group is specified by frontstage the uses it. The Content Group define how the different contents are to be presented to the user in the group's layout property.

const one2dIModelViewport: ContentGroupProps = {
  id: "one2dIModelViewport",
  layout: StandardContentLayouts.singleView,

  contents: [
    {
      id: "main-view"
      classId: ViewportContent,
    },
  ],
};

const contentGroup = new ContentGroup(one2dIModelViewport);

The following shows a sample with two entries that reference the ViewportContent and TableContent defined above. applicationData is defined for each content control, which is provided to the ContentControl constructor via the options parameter. In iTwinjs 3.0 and later, the display of default view overlays are required to be an opted-into. The example below shows the featureOptions to set to opt-in.

contentGroup = new ContentGroup({
  id: "myApp:IModelWithTable",
  layout: StandardContentLayouts.twoHorizontalSplit,
  contents: [
    {
      classId: IModelViewportControl,
      applicationData: {
      viewState: UiFramework.getDefaultViewState,
      iModelConnection: UiFramework.getIModelConnection,
        rulesetId: this._rulesetId,
        featureOptions:
          {
            defaultViewOverlay: {
              enableScheduleAnimationViewOverlay: true,
              enableAnalysisTimelineViewOverlay: false,
              enableSolarTimelineViewOverlay: false,
            },
          },
      },
    },
    {
      classId: TableContent,
      applicationData: {
        iModelConnection: UiFramework.getIModelConnection,
        rulesetId: this._rulesetId,
      },
    }
  ],
});

Content Group Provider

A frontstage may either specify a 'static' ContentGroup or it may specify a ContentGroupProvider instance that will construct a ContentGroup when the FrontstageDef is being created the first time a stage is activated. This allows the user to potentially generate a ContentGroup based on state that was saved the last time the user opened the stage in a specific imodel.

Content Layouts

Standard Content Layouts are provided via the class StandardContentLayouts. Users may also provide custom layouts using the ContentLayoutProps interface. The layout is referenced by a ContentGroup within a Frontstage.

A single view

The following shows a sample layout with a single piece of content. The Content Layout is loaded and registered into ConfigurableUiManager and can be referenced by its id by any Frontstage.

const singleContent: ContentLayoutProps = {
  id: "SingleContent",
};

const contentLayoutDef = new ContentLayoutDef(singleContent);
ConfigurableUiManager.loadContentLayout(contentLayoutDef);

Two views, one beside the other

The following shows a sample layout with two pieces of content that are side by side, sized evenly and divided by a vertical splitter. The left content references index 0 in the Content Group and the right content references index 1 in the Content Group.

const twoHalvesVertical: ContentLayoutProps = {
  id: "TwoHalvesVertical",
  verticalSplit: { percentage: 0.50, left: 0, right: 1 },
};

Two views, one above the other

The following shows a sample layout with two pieces of content, one above the other, sized evenly and divided by a horizontal splitter. The top content references index 0 in the Content Group and the bottom content references index 1 in the Content Group.

const twoHalvesHorizontal: ContentLayoutProps = {
  id: "TwoHalvesHorizontal",
  horizontalSplit: { percentage: 0.50, top: 0, bottom: 1 },
};

Three views, one on the left, two stacked on the right

The following shows a sample layout with three pieces of content. The left side takes up half of the window, and the right side takes up the other half. The right side displays two pieces of content, one above the other and are sized evenly. The left content references index 0 in the Content Group, the top content references index 1, and the bottom content references index 2 in the Content Group.

const threeRightStacked: ContentLayoutProps = {
  id: "ThreeRightStacked",
  verticalSplit: {
    percentage: 0.50,
    left: 0,
    right: { horizontalSplit: { percentage: 0.50, top: 1, bottom: 2 } },
  },
};

Four views laid out in quadrants

The following shows a sample layout with four pieces of content. There is a top half and a bottom half. Each of these halves contain two pieces of content that are side by side and sized evenly.

const fourQuadrants: ContentLayoutProps = {
  id: "FourQuadrants",
  horizontalSplit: {
    percentage: 0.50,
    top: { verticalSplit: { percentage: 0.50, left: 0, right: 1 } },
    bottom: { verticalSplit: { percentage: 0.50, left: 2, right: 3 } },
  },
};

Floating content view

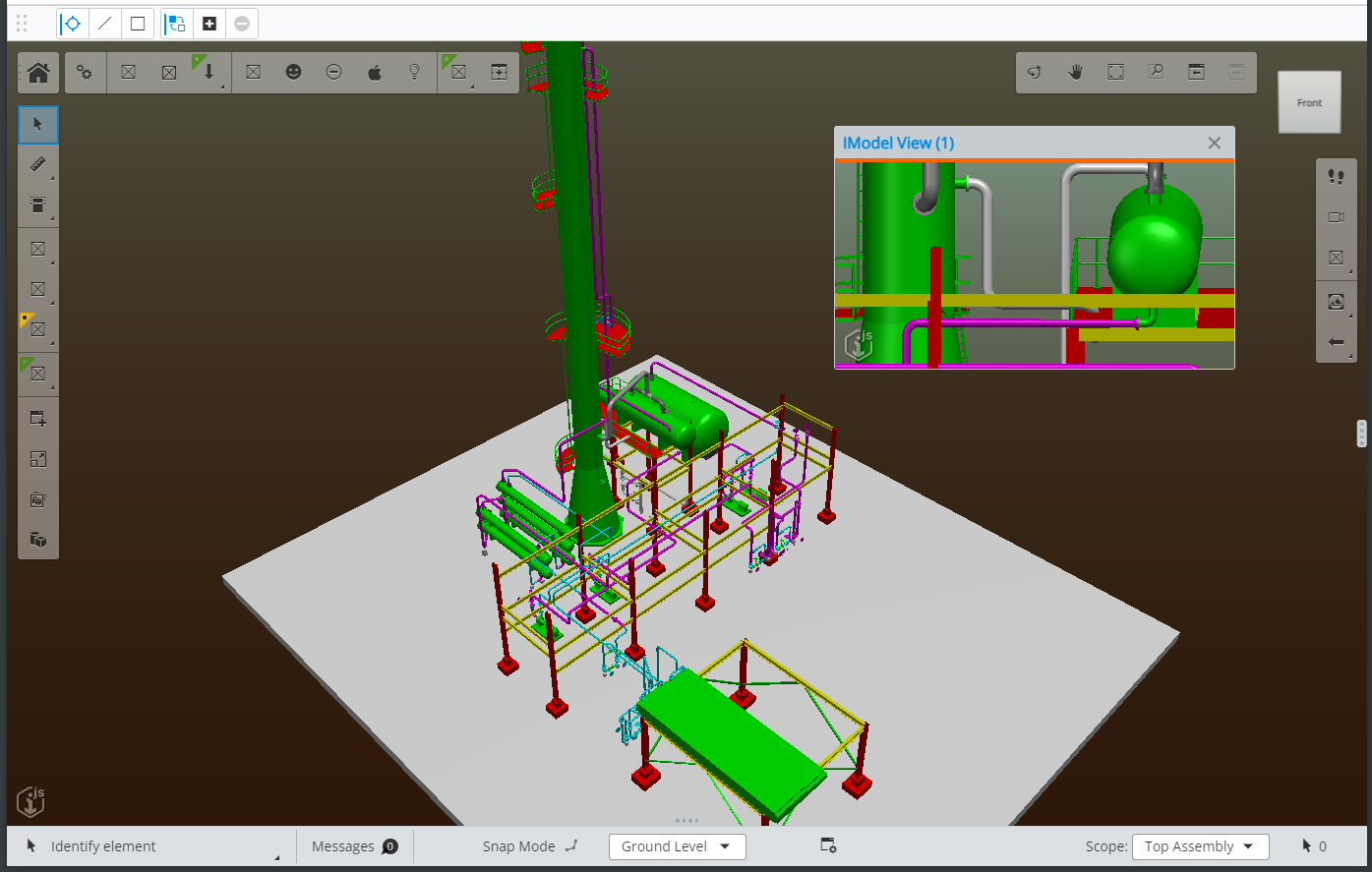

In addition to the "fixed" content views that are defined for a Frontstage, via the ContentGroupProps, one or more "floating" content dialogs can be opened to display an IModel view, as seen below.

Floating iModel Content Dialog

The code snippet below is from the ui-test-app file ImmediateTools.tsx and shows the API call to open a floating content dialog. The ContentDialogManager manages the z-index of the "active" content dialog and ensures the active dialog appears above other floating content dialogs.

    ContentDialogManager.openDialog(<IModelViewDialog x={x} y={y} id={OpenViewDialogTool.dialogId}
      title={`IModel View (${OpenViewDialogTool._counter})`} />, OpenViewDialogTool.dialogId);

The example IModelViewDialog component uses the component PopupTestView, child component FloatingViewportContent, the active IModel and the default viewstate to display an IModel view. This example PopupTestView also registers a custom right-click menu to show when right-clicking on the view canvas. The z-index of these dialogs are below the z-index of all other UI elements.
