Data Evolution Across Time

Introduction

BIS needs to support modeling of infrastructure that evolves over time. The evolution may be as simple as defining a few new properties to elaborately detailing an item. BIS supports this entire range.

For this appendix, a staircase will be used as an example to illustrate evolution over time. The designer of the Stair class will not be able to predict all possible information that may need to be associated with the stair in the future, or how complex a Stair definition will be needed.

Start Simple

It is best to start with as few assumptions and requirements as possible. The Stair class designer determines that Stair is a PhysicalElement, and gives it a definition such as “*A vertical passageway allowing occupants to walk (step) from one floor level to another floor level at a different elevation. It may include a landing as an intermediate floor slab.*” (which was copied from IAI). The Stair class needs no other complexity to be functional.

Simple Stair Inheritance Diagram

Start Simple

Simple Stair Instance Diagram

Stair

The Stair instance can be defined purely by the GeometryStream EC Property (inherited from GeometricElement3d) within the instance. A Stair modeled like that might be created through import from IFC. It is unlikely that a Stair designed natively in a iModel application would be defined in this manner.

Using Types

Using Types allows easier and clearer Stair definition. As a Stair is a PhysicalElement, it has the PhysicalElementIsOfType relationship and hence an instance can be defined by its relationship to a Type. For clarity the schema designer will probably add a StairType class and a custom relationship:

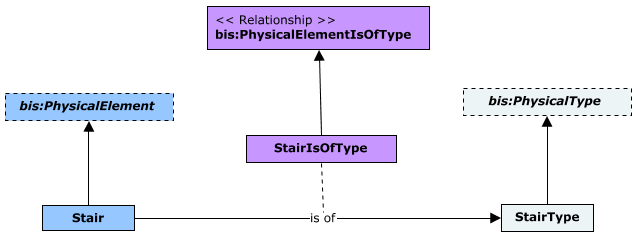

Stair Using Types Inheritance Diagram

Using Types

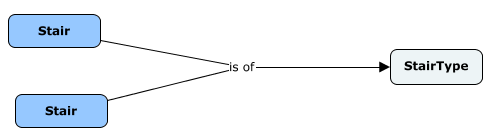

Stair Using Types Instance Diagram

Stair Inheritance

This Type modeling is likely to used extensively in both the preliminary design and design phases.

Using Child Elements

Stairs using either a Type or a FormAspect may eventually need to be detailed (detailed modeling could also be done from the start). This detailing is enabled using child Elements. To support this, the Stair class designer will add the mixin class IParentElement as a superclass of Stair (indicating that this Stair can be defined via its children, but not via a sub-Model). For further clarity, thee Stair class designer will subclass PhysicalElementAssemblesChildElements…..

This modeling allows the stair to be defined by any PhysicalElement; the Stair class designer has provided extreme flexibility, but weak “compile-time type checking”. This compromise is common in BIS.

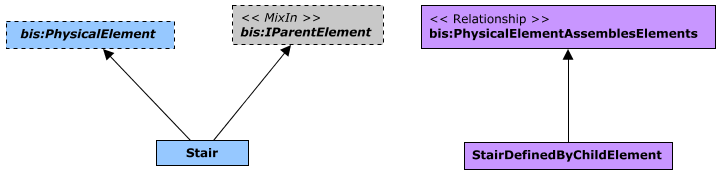

Stair Using Children Inheritance Diagram

Stair defined by Physical Element

Stair Using Children Instance Diagram

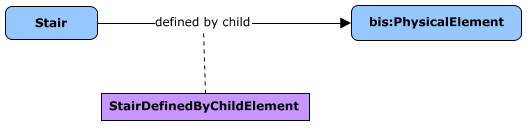

Stair Inheritance defined by Child Element

All of these modeling approaches will all be available through the schema, but will never be used simultaneously by the same instance.

Simple Data Additions – Aspects & Relationships

Other schema designers can create Aspects that can be attached to Stair or one of its superclasses. The Stair class designer does not need to predict all Aspects that may need to be associated with Stair in the future. Users may take advantage of these Aspects at any point in time.

Relationships – like Aspects – can be defined for the Stair class (and its superclasses) without any knowledge by the Stair class designer. Users may take advantage of these Relationships to other Elements at any point in time.
